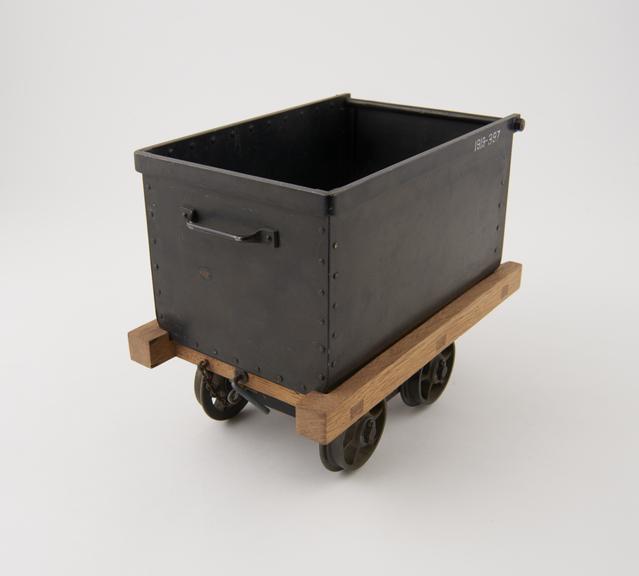

Model (scale 1:6) of End-Tipping Ore Truck

Model (scale 1:6) of End-Tipping Ore Truck

This simple form of end-tipping truck is one that is used for the transport of ore from the mine face and workings to the ore bins, and for short haulage purposes generally.

The underframe is of hard wood carried on two square axles with loose flanged wheels 10 in. diameter by 18 in. gauge. The body is of mild steel 0.125 inches, thick, the bottom and sides being bent from a single plate which is riveted to angles at the ends. The bottom is protected by a renewable wooden floor. The door is hinged at the top, and its locking bolt is operated from a lever at the rear. As the centre of gravity of the body is only a short distance back from the centre of the underframe, a slight lift from the rear handle tips the truck. The capacity is 12 cubic. feet.
