Fixture plate
- maker:
- Mitutoyo Manufacturing Co.
This image is released under a CC BY-NC-SA 4.0
Licence
License this image for commercial use at Science and Society Picture Library
License
Science Museum Group
© The Board of Trustees of the Science Museum

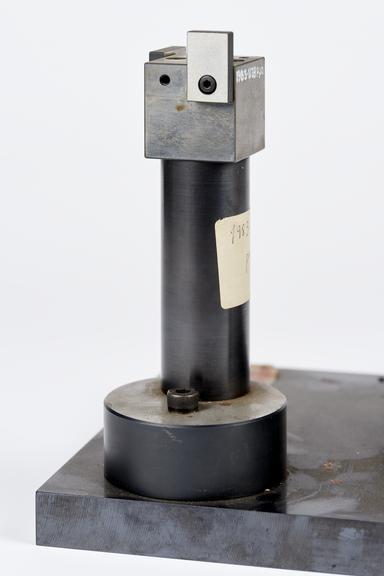

Fixture plate for the workpiece with origin gauging point attached to enable base points to be established for use with the Mitutoyo co-ordinate measuring machine.
Details
- Category:
- Industrial Metrology
- Object Number:
- 1983-1178 Pt10
- Materials:
- steel
- Measurements:
-
overall: 7.4803 x 15.748 x 8.2677 in.; 190 x 400 x 210 mm
