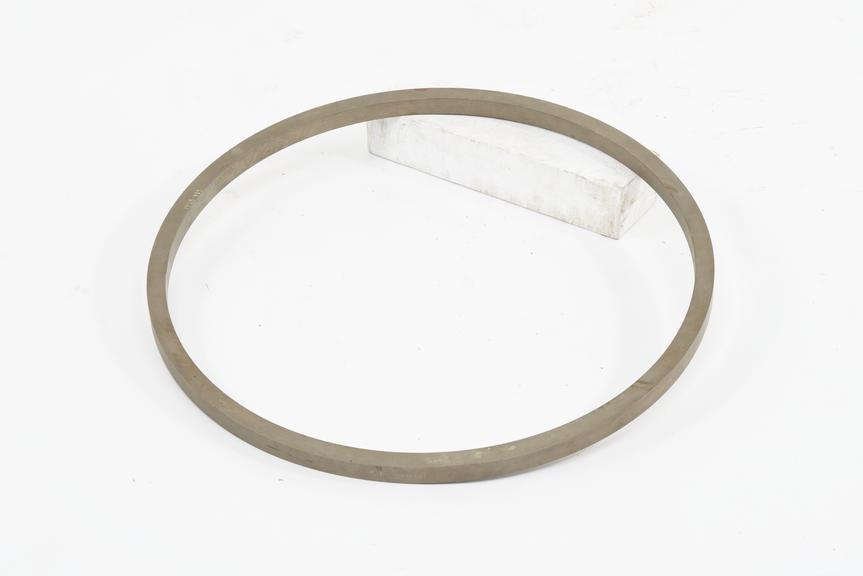

"No oil metal" solid piston ring for 26 1/2" diam. cylinder. Loftus Perkins's patent A.D. 1872, No.3845

Details

Category:
Motive Power
Object Number:
1926-905
Measurements:
overall: 25 mm 673 mm,
type:
piston ring
credit:
Baker Perkins Limited
