Wheatstone's Electrical Counter, 1858
- Made:
- 1858
- patentee:
- CHARLES WHEATSTONE
This image is released under a CC BY-NC-SA 4.0
Licence
License this image for commercial use at Science and Society Picture Library
LicenseWheatstone's Electrical Counter, 1858
Science Museum Group
© The Board of Trustees of the Science Museum

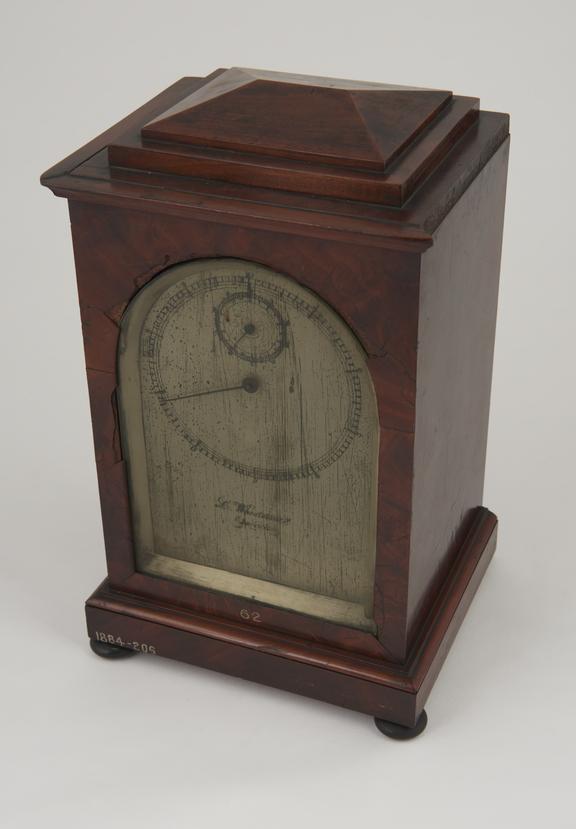

Wheatstone's Electrical Counter, 1858
This instrument, patented by Sir C. Wheatstone in 1858, consists of two dials over which pointers are moved by gearing from a step-by-step propulsion actuated by an electro-magnet. The poles of the latter are adjacent, and between them oscillates a magnetised needle carrying the arbor of a ratchet wheel of fifteen teeth, which engages with a fixed pawl and is thus slowly turned by the currents received; this motion is recorded by a counter.
