Model, (scale 1:4) of Perkins's Water Tube Boiler

Model, (scale 1:4) of Perkins's Water Tube Boiler

Creative Commons LicenseThis image is released under a CC BY-NC-SA 4.0 Licence

License this image for commercial use at Science and Society Picture Library

License

Science Museum Group
© The Board of Trustees of the Science Museum

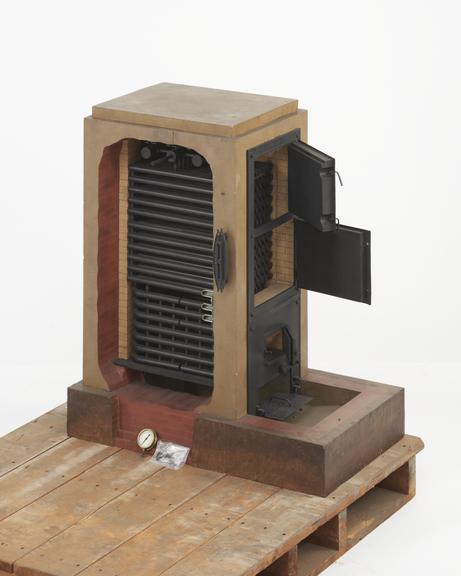

Model, (scale 1:4) of Perkins's Water Tube Boiler (made from particulars furnished by the Dorking Grey Stone Lime Co.)

Details

Category:
Motive Power
Object Number:
1930-246
Measurements:
overall: 913 mm x 485 mm x 818 mm,
type:
model
