Length morse silent high speed rocker

Made:
1908 in London
maker:
Westinghouse Brake & Signal Company

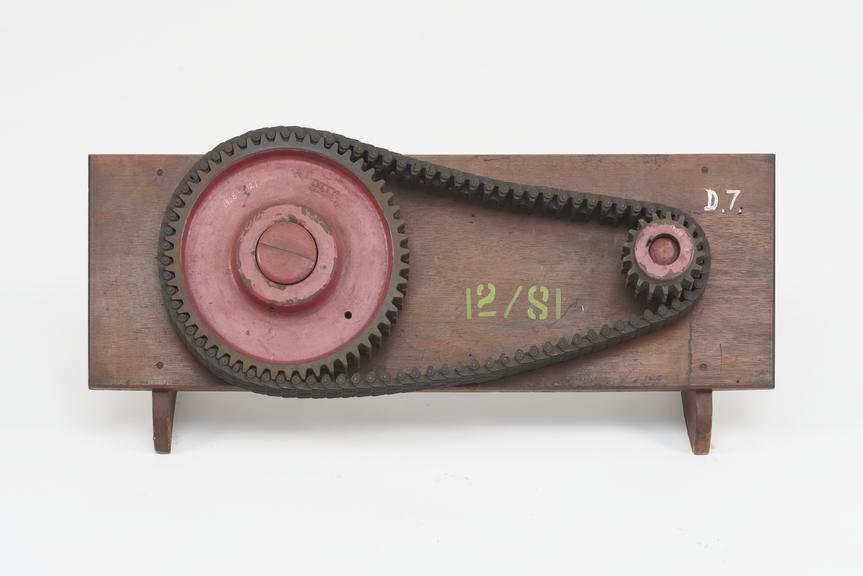

Length morse silent high speed rocker - joint chain of 86 links on wheels of 51 and 17 teeth mounted on board, pitch 0.9in, width 2in

Details

Category:
Mechanical Power Transmission
Object Number:
1908-121
Materials:
steel
Measurements:
overall: 415 mm x 1070 mm x 340 mm,
type:
transmission chain
credit:
Westinghouse Brake Co. Ltd.
