Liner "Silent" chain no.2525

Made:
1911 in Didsbury
Liner "Silent" chain no.2525

Creative Commons LicenseThis image is released under a CC BY-NC-SA 4.0 Licence

License this image for commercial use at Science and Society Picture Library

License

Science Museum Group
© The Board of Trustees of the Science Museum

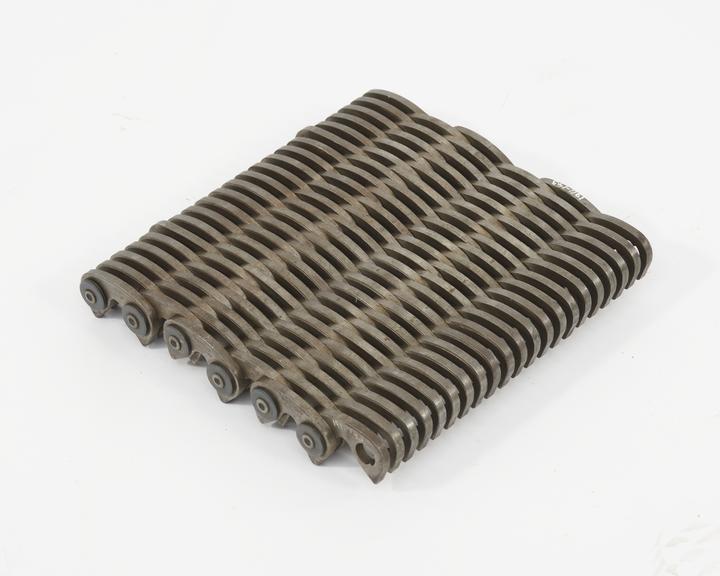

Liner "Silent" chain no.2525, 1 3/4" pitch 12.2" wide, 6 links long; made by Renold and Coventry Chain Co.

Details

Category:
Mechanical Power Transmission
Object Number:
1911-143
Materials:
steel
Measurements:
overall: 305 mm x 315 mm x 50 mm,
: 1.378 x 11.2205 x 12.2047 in.; 35 x 285 x 310 mm
type:
chain drive
credit:
Renold and Coventry Chain Co. Ltd.; Hans Renold Ltd.
