Hanger for shafting

Made:
1900-1920 in unknown
Hanger for shafting

Creative Commons LicenseThis image is released under a CC BY-NC-SA 4.0 Licence

License this image for commercial use at Science and Society Picture Library

License

Science Museum Group
© The Board of Trustees of the Science Museum

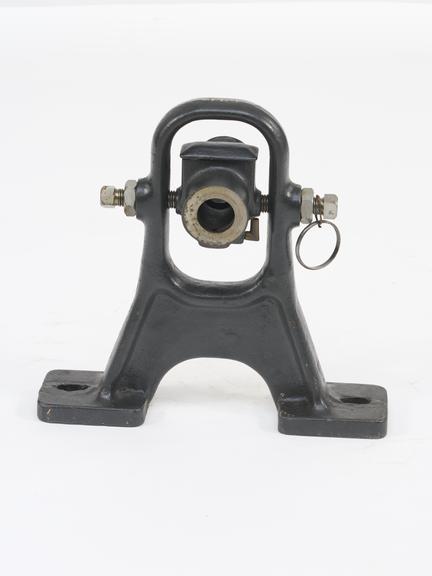

Hanger for shafting, with an adjustable swivelling plain bearing.

Details

Category:
Mechanical Power Transmission
Object Number:
1926-415
Materials:
cast iron and bronze
Measurements:
overall: 396 mm x 415 mm x 168 mm,
type:
plain bearing
