Mitutoyo Profile Projector PJ300 including 319-101 stage

Made:
1982 in Tokyo

Mitutoyo Profile Projector PJ300 including 319-101 stage, digimatic heads, 2 axis green display, 10x lens, 20x lens, wooden cabinet 999000 and small accessories.

Details

Category:
Industrial Metrology
Object Number:
1982-1806
type:
profile projector
credit:
Mitutoyo (UK) Ltd.

Parts

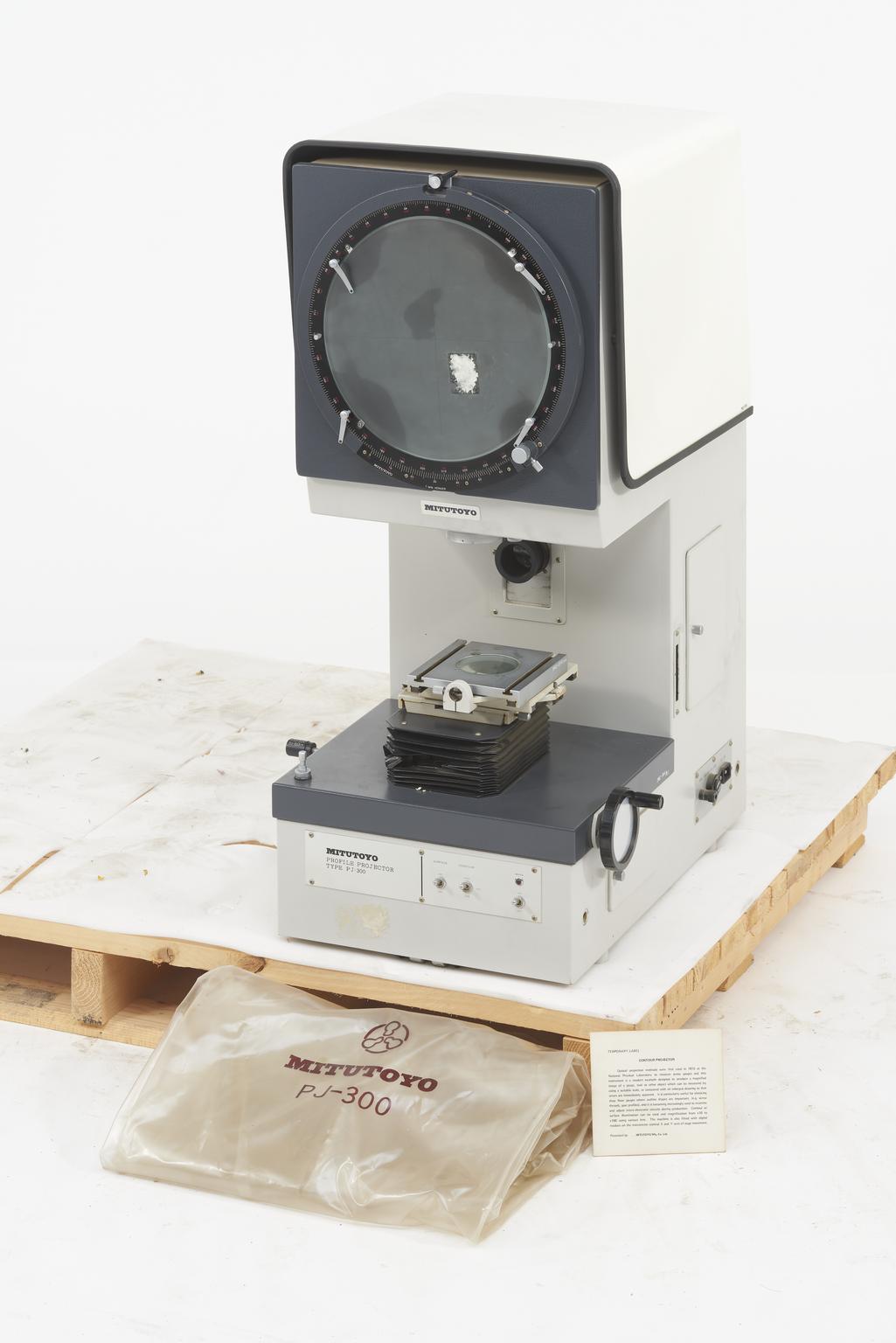

Main basic Mitutoyo P J 300 projector unit

Main basic Mitutoyo P J 300 projector unit

Main basic Mitutoyo P J 300 projector unit, model 302-101, 1982

Measurements:
overall: 39.5276 x 26.6535 x 25.4331 in.; 1004 x 677 x 646 mm
Materials:
steel and glass
Object Number:
1982-1806 Pt1
type:
profile projector

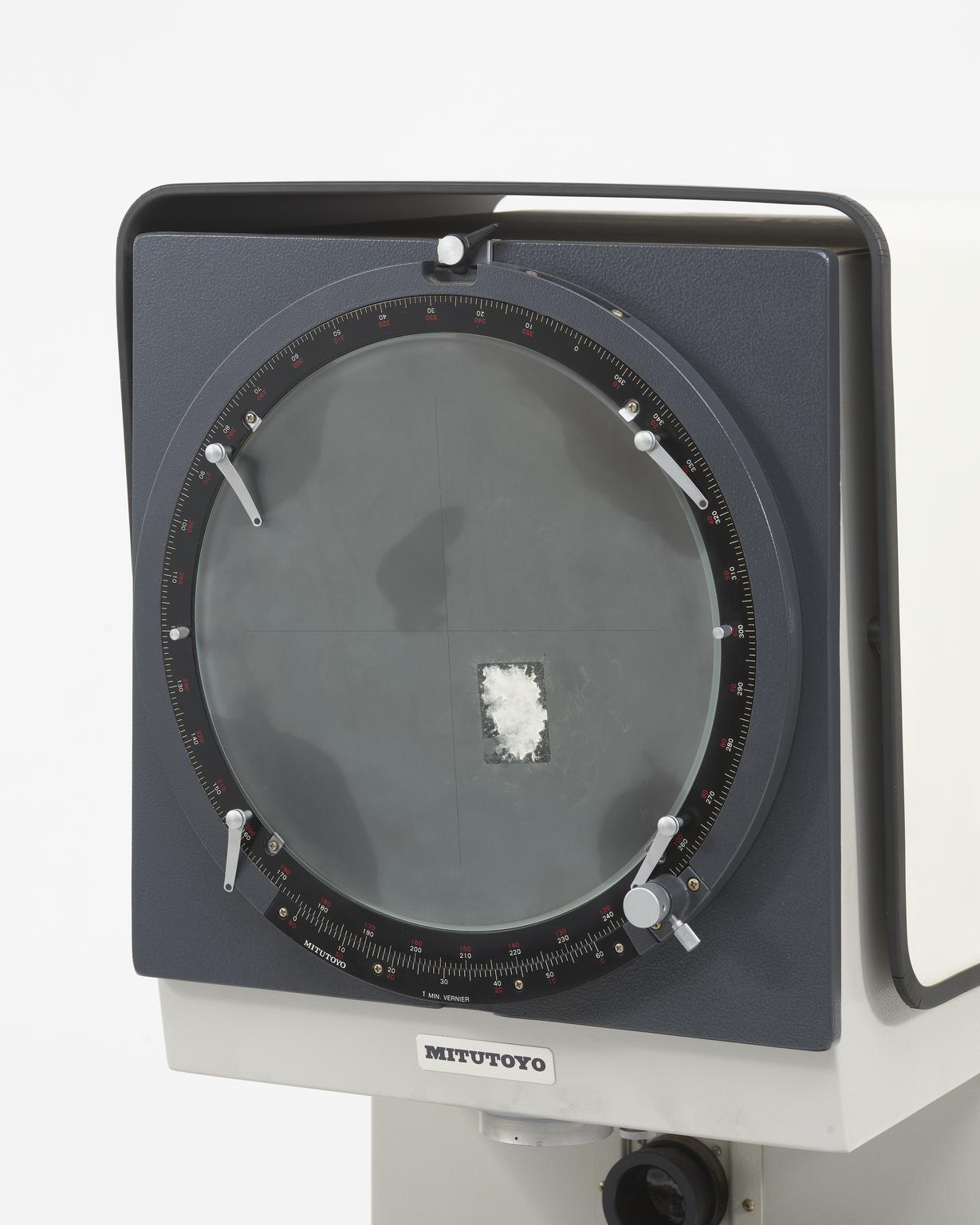

Day bright projection screen model 172-191 by Mitutoyo onto which the workpiece image is projected

Day bright projection screen model 172-191 by Mitutoyo onto which the workpiece image is projected

Day bright projection screen model 172-191 by Mitutoyo onto which the workpiece image is projected, and includes a calibrated protractor scale and vernier. Glass is ground and has a cross hairline; dated 1982.

Measurements:
overall: 1.9685 x 14.9606 in.; 50 x 380 mm
Materials:
glass and steel (metal)
Object Number:
1982-1806 Pt2
type:
profile projector

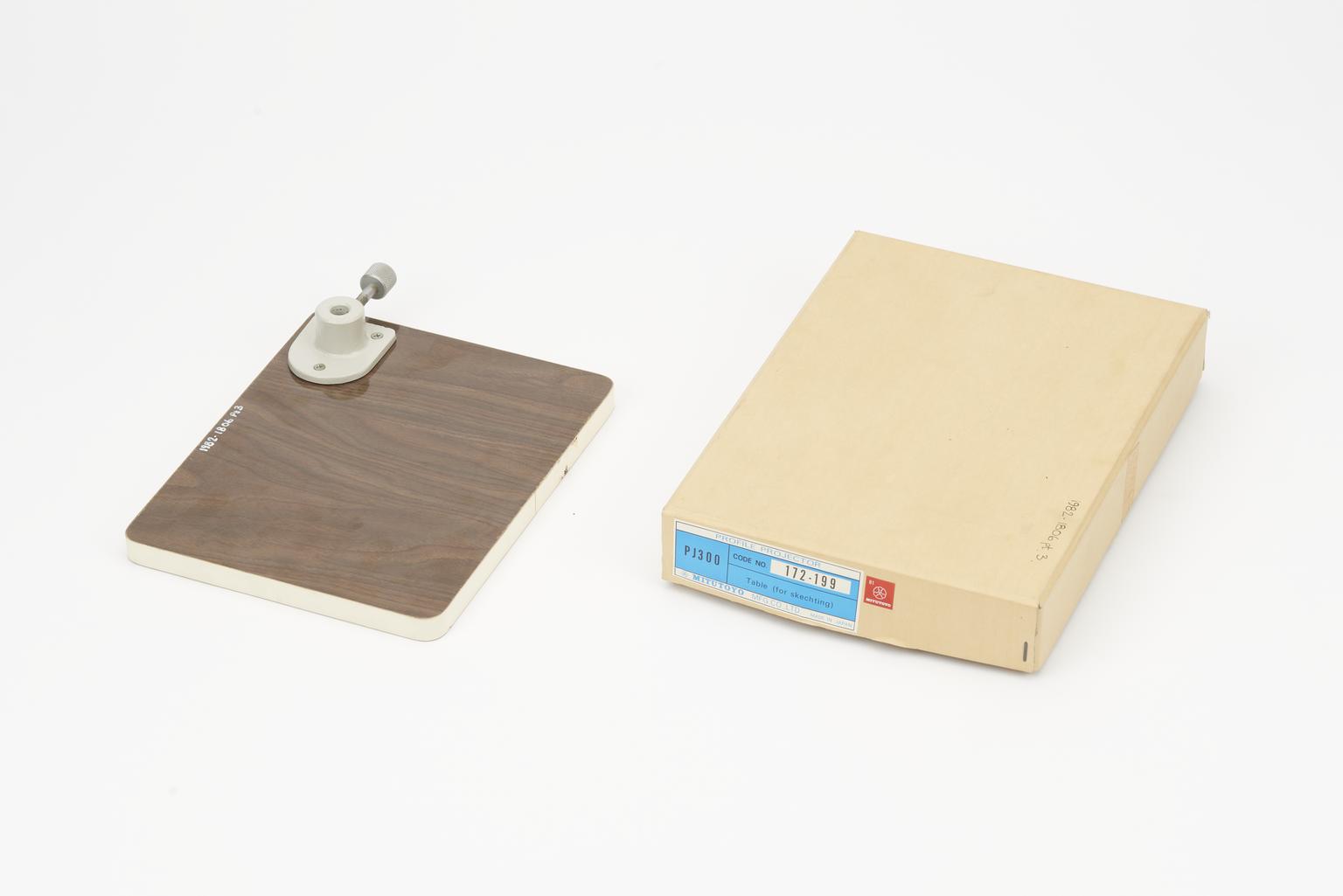

Table, part No 172-199 for mounting on the Mitutoyo profile projector

Table, part No 172-199 for mounting on the Mitutoyo profile projector

Table, part No 172-199 for mounting on the Mitutoyo profile projector.

Measurements:
overall: 1.9685 x 8.6614 x 7.0866 in.; 50 x 220 x 180 mm
Materials:
steel , fixing screw broken off and plastic
Object Number:
1982-1806 Pt3
type:
profile projector

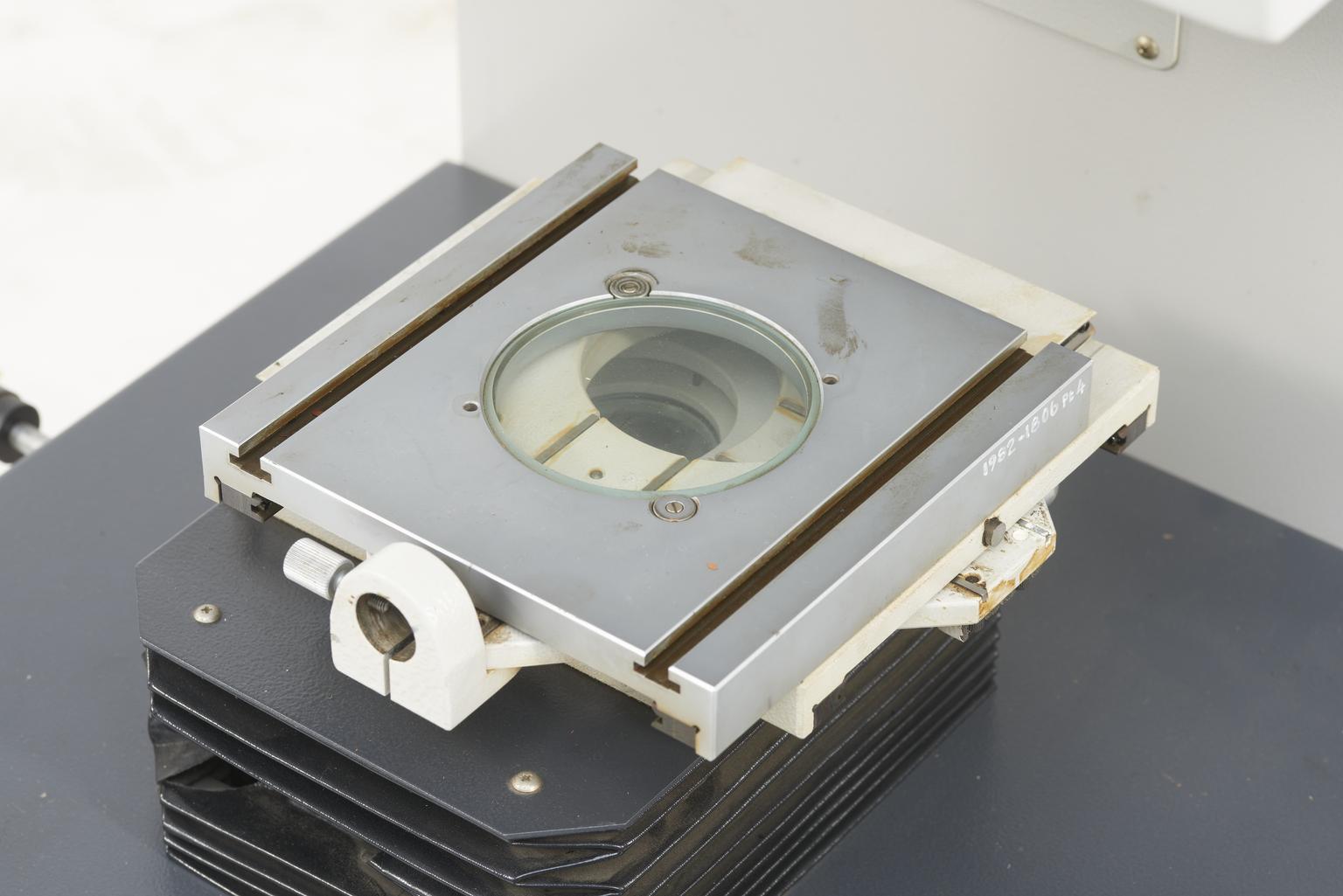

Stage part number 172-101 for mounting on the base unit to carry micromrters

Stage part number 172-101 for mounting on the base unit to carry micromrters

Stage part number 172-101 for mounting on the base unit to carry micromrters.

Measurements:
2.6772 x 8.2677 x 7.4803 in.; 68 x 210 x 190 mm
Materials:
cast iron
Object Number:
1982-1806 Pt4
type:
profile projector

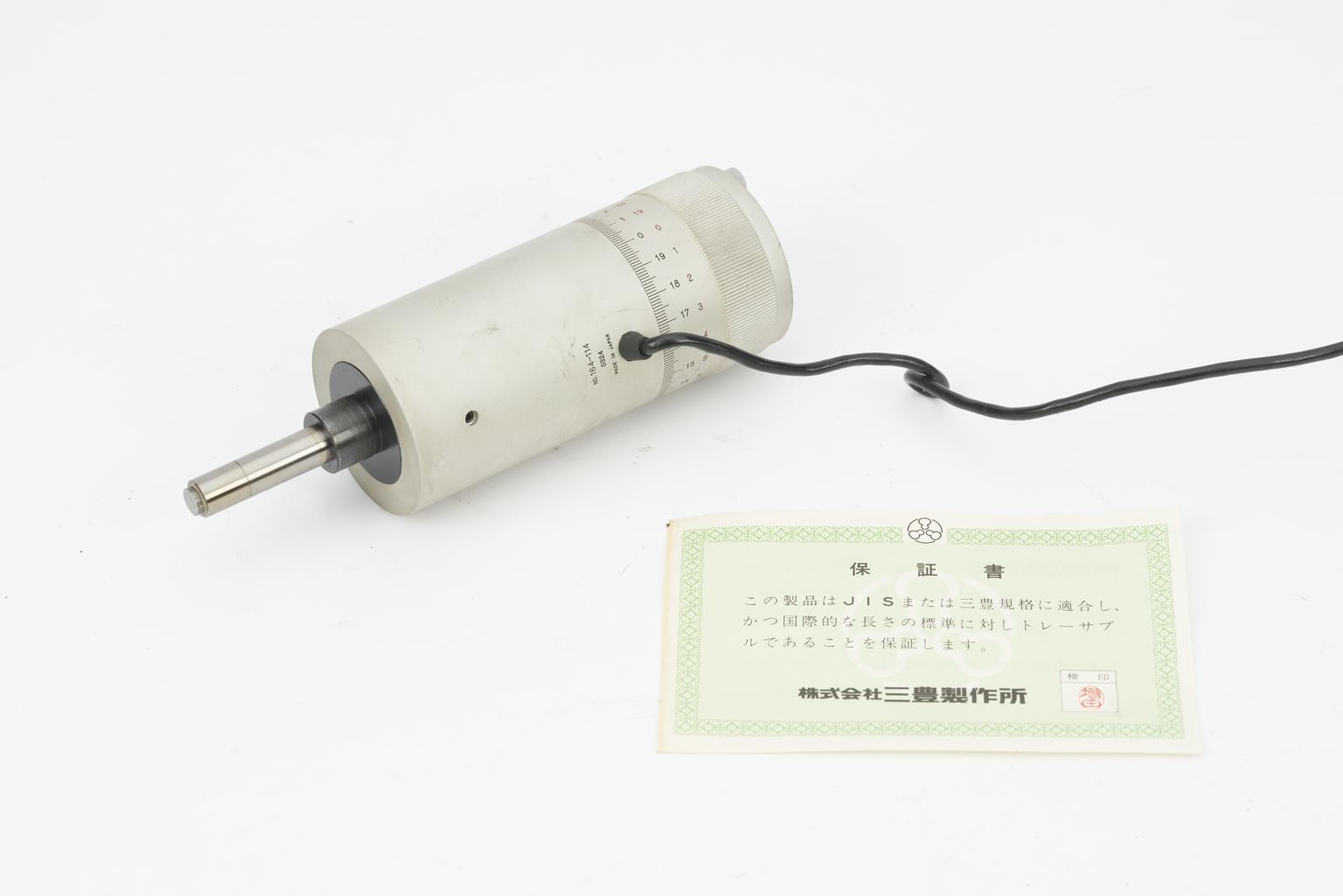

Digital 0-2" micrometer head

Digital 0-2" micrometer head

Digital 0-2" micrometer head, 'digimatic' model no 164-114 complete with plugs and leads.

Materials:
steel
Object Number:
1982-1806 Pt5
type:
micrometer and instrument component
Digital 0-2" micrometer head

Digital 0-2" micrometer head

Digital 0-2" micrometer head, 'digimatic' model no 164-114 complete with plugs and leads.

Materials:
steel (metal)
Object Number:
1982-1806 Pt6
type:
micrometer and instrument component

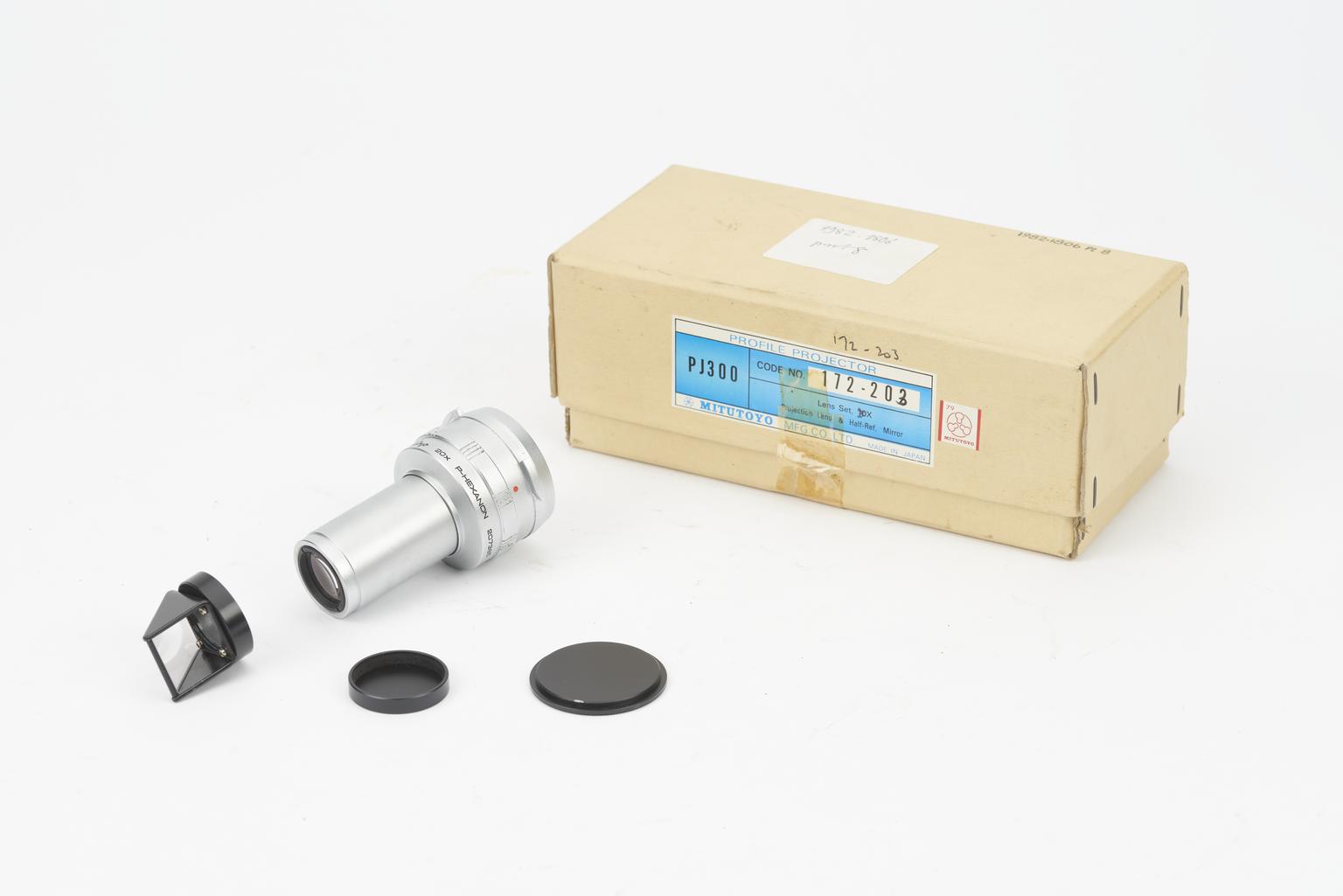

10 times magnification lens unit

10 times magnification lens unit

10 times magnification lens unit with end cap and half mirror for use with the Mitutoyo profile projector.

Materials:
steel and glass
Object Number:
1982-1806 Pt7
type:
profile projector-lens
20 times magnification lens unit

20 times magnification lens unit

20 times magnification lens unit with end cap and half mirror for use with the Mitutoyo profile projector.

Materials:
glass and steel (metal)
Object Number:
1982-1806 Pt8
type:
profile projector-lens
Two drawer wooden cabinet to support and store accesories to the Mitutoyo profile projector

Two drawer wooden cabinet to support and store accesories to the Mitutoyo profile projector

Two drawer wooden cabinet to support and store accesories to the Mitutoyo profile projector.

Measurements:
overall: 26.378 x 18.8976 x 32.6772 in.; 670 x 480 x 830 mm
Materials:
wood chip board and steel
Object Number:
1982-1806 Pt9
type:
profile projectorcabinet
Mitutoyo model No 164 series double axis 'E' counter

Mitutoyo model No 164 series double axis 'E' counter

Mitutoyo model No 164 series double axis 'E' counter, code number 164-735

Materials:
steel and electronic components
Object Number:
1982-1806 Pt10
type:
profile projector counter
Green shade on metal stem part No 172-201 for use with the Mitutoyo profile projector

Green shade on metal stem part No 172-201 for use with the Mitutoyo profile projector

Green shade on metal stem part No 172-201 for use with the Mitutoyo profile projector.

Measurements:
5.9055 x 5.1181 in.; 150 x 130 mm
Materials:
steel and plastic
Object Number:
1982-1806 Pt11
type:
profile projector -accessory

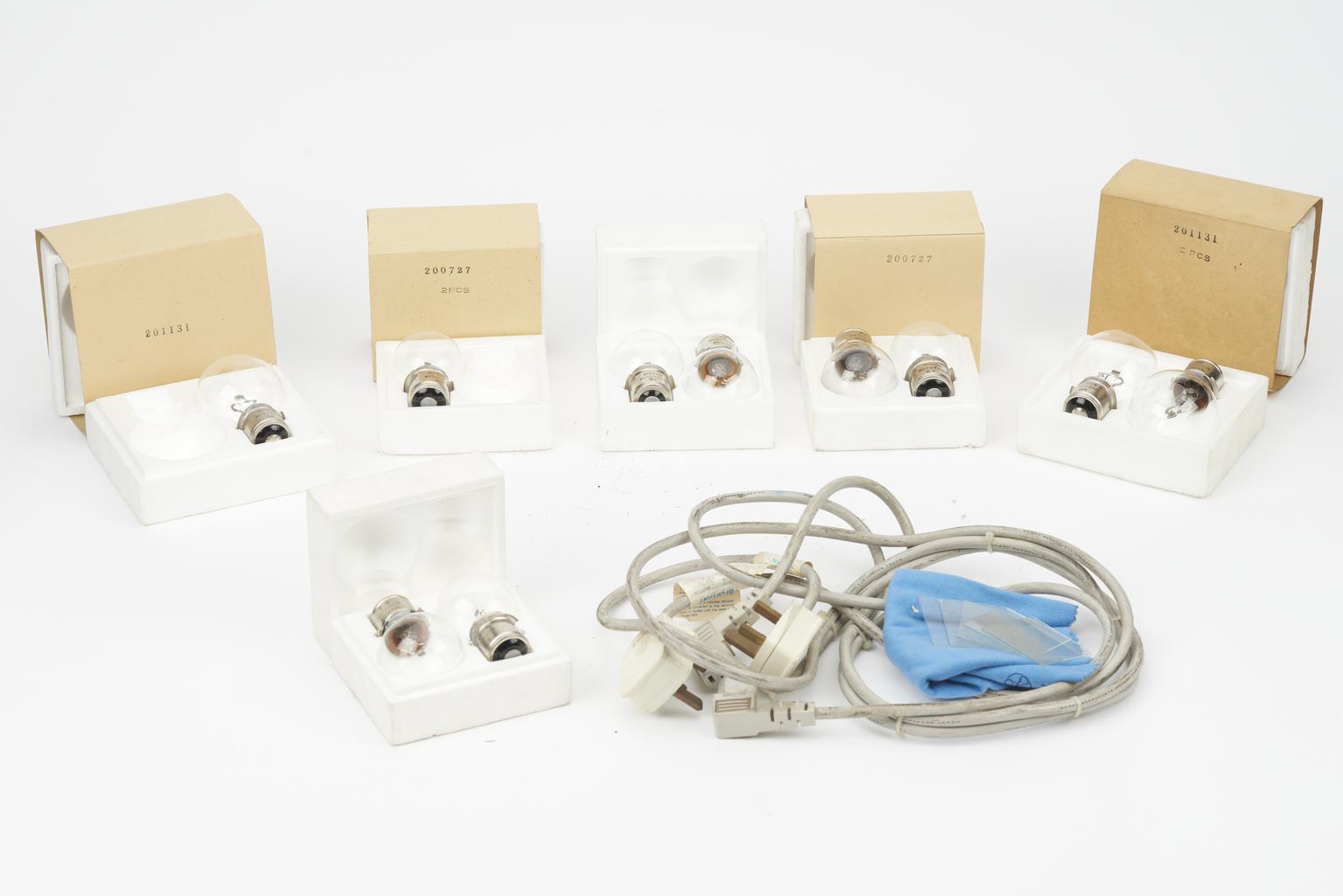

Various spares and accessories for the Mitutoyo profile projector

Various spares and accessories for the Mitutoyo profile projector

Various spares and accessories for the Mitutoyo profile projector being: two spare chart clips for the screen (part 2); six 50 x 50 mm glass slides; seven 12V 100W bulbs; four 12V 150W bulbs; silicone duster; four cap head screws and two mains voltage lead.

Materials:
steel and glass
Object Number:
1982-1806 Pt12
type:
profile projector accessories

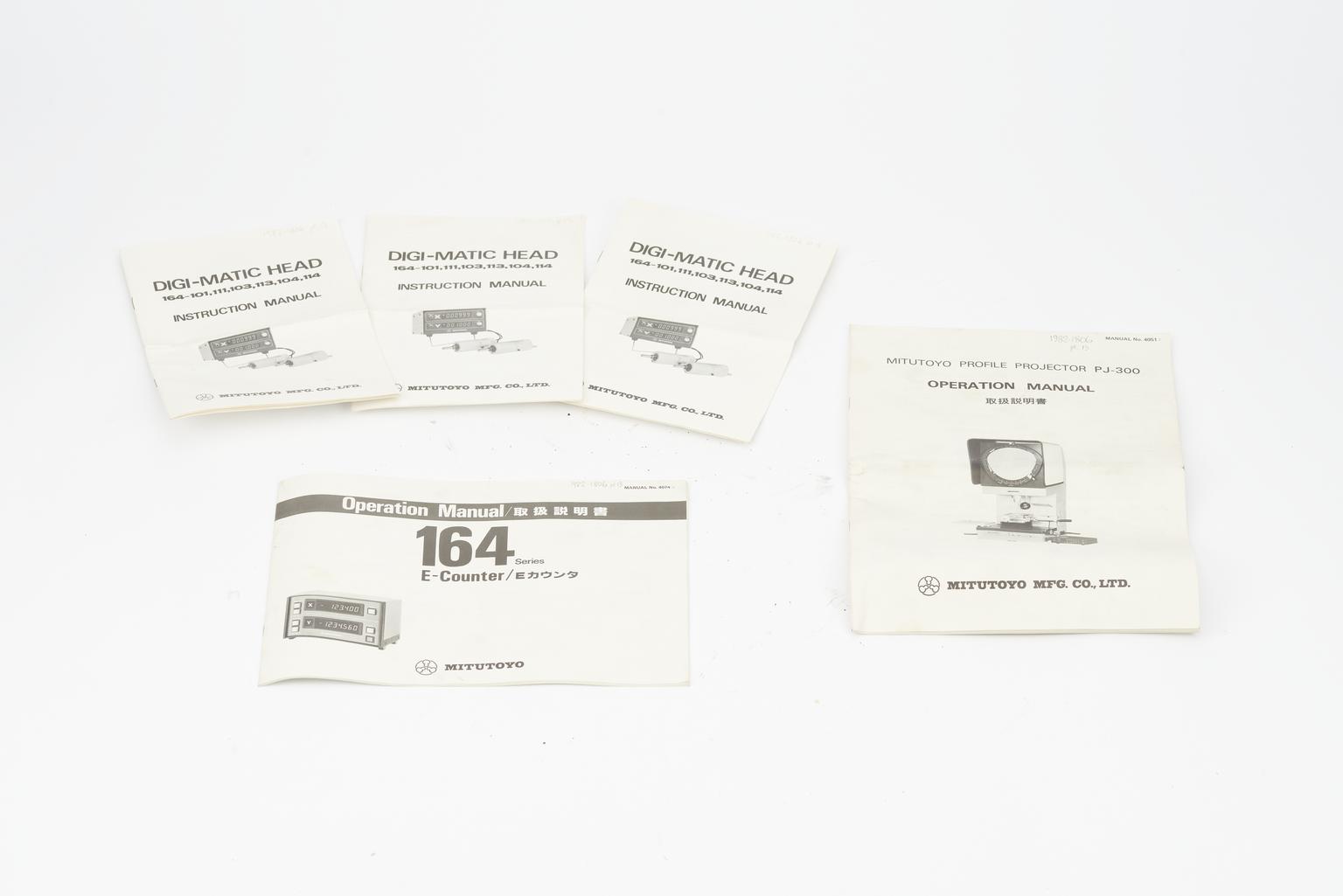

Operating manuals for the Mitutoyo profile projector being

Operating manuals for the Mitutoyo profile projector being

Operating manuals for the Mitutoyo profile projector being, for 164 E counter (1 copy); digimatic digital micrometer heads (3 copies) and the operation manual for theP I 300 projector.

Materials:
paper
Object Number:
1982-1806 Pt13
type:
manual
Fisher gauge

Fisher gauge

Test sample for the Mitutoyo profile projector being a FisherGaugemade injection metal small bevel gear.

Object Number:
1982-1806 Pt14
type:
profile projector - test sample
