Single cylinder petrol motor with mechanically operated valves and magneto ignition

Single cylinder petrol motor with mechanically operated valves and magneto ignition

Creative Commons LicenseThis image is released under a CC BY-NC-SA 4.0 Licence

License this image for commercial use at Science and Society Picture Library

License

Science Museum Group
© The Board of Trustees of the Science Museum

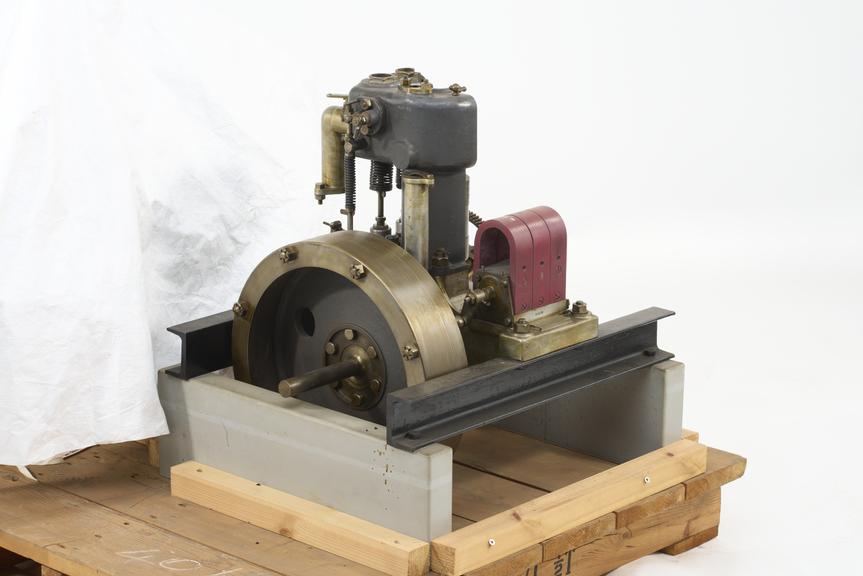

Single cylinder petrol motor with mechanically operated valves and magneto ignition, 5-6 brake h.p. No. 2011, partly sectioned in Museum

Details

Category:
Heat Engines (non steam)
Object Number:
1905-45
Measurements:
overall: 620 mm x 550 mm x 600 mm,
type:
motors
credit:
Sim's Manufacturing Co.
