Drawing of details of operating mechanism for ashpan door
- Made:
- 1990-05-01-1990-05-31
- part of archive:
- Engineering Drawings for the Replica 'Planet' Locomotive
This image is released under a CC BY-NC-SA 4.0
Licence
Buy this image as a print
BuyLicense this image for commercial use at Science and Society Picture Library
LicenseThis image is released under a CC BY-NC-SA 4.0
Licence
Buy this image as a print
BuyLicense this image for commercial use at Science and Society Picture Library
License
Science Museum Group
© The Board of Trustees of the Science Museum
Science Museum Group
© The Board of Trustees of the Science Museum

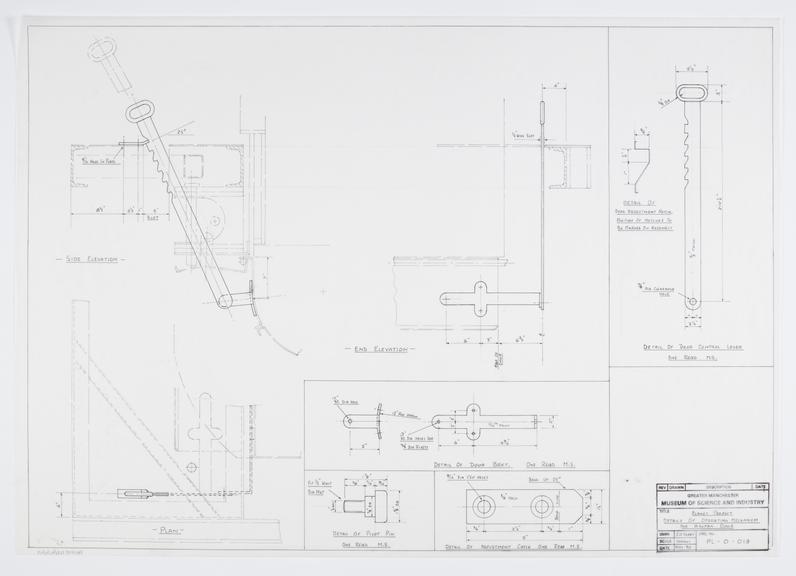

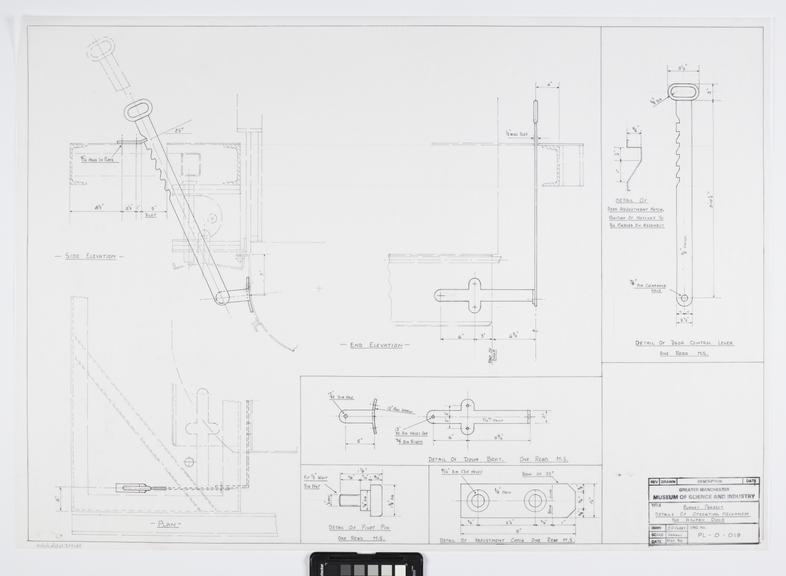

Engineering drawing for the replica Planet locomotive. Drawing number PL-0-019, Scale: Various. Name of draughtsman: J.A. Furey.
