Bowjection projection television

Bowjection projection television Bowjection projection television Bowjection projection television

'Bowjection' projection television by Rainbow Radio serial no X10013, 1952. Monochrome video projector using the Mullard optical system (2.5 inch tube in a schmidt folded optical system).

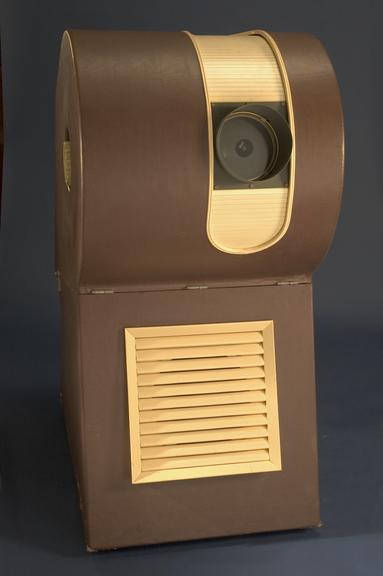

A Rainbow Bowjection projection television receiver, made in England around 1951.

Projection television sets were popular in the early 1950s, although they had been around before the war. Instead of using a very expensive large cathode ray tube to give a big picture, these sets used a 2 inch high brightness tube to project the image on to a screen (4 foot x 3 foot).

The Bowjection was made by the Rainbow Radio Manufacturing Company, Mincing Lane, Blackburn, Lancashire. First announced in May 1952 and advertised in October 1952 at £175 plus an extra £21 for the special screen, advertisements continued regularly for several years.

Details

Category:
Television
Object Number:
1987-5028
Materials:
plastic (unidentified), metal (unknown), glass and electrical components
Measurements:
overall: 1065 mm x 520 mm x 760 mm, 53 kg
type:
projection television receiver
credit:
The National Media Museum, Bradford
