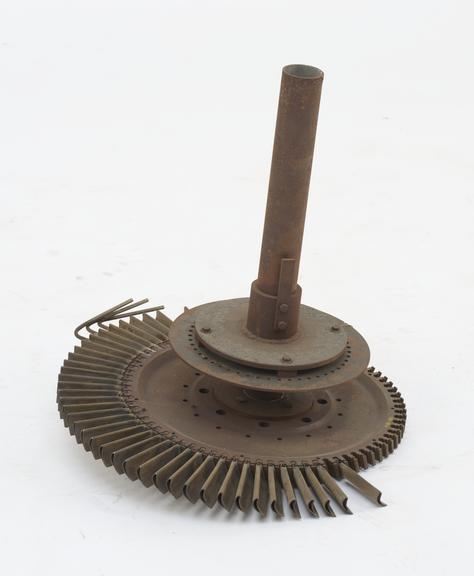

Turbine disc with some blades for BMW 003 gas turbine

Details

Category:
Aircraft Propulsion
Object Number:
1982-882
Measurements:
overall: 600 mm x 540 mm x 640 mm,
type:
blades
credit:
Cranfield Institute of Technology
