Scarf joint

Made:
Middlesex
Scarf joint

Creative Commons LicenseThis image is released under a CC BY-NC-SA 4.0 Licence

License this image for commercial use at Science and Society Picture Library

License

Science Museum Group
© The Board of Trustees of the Science Museum

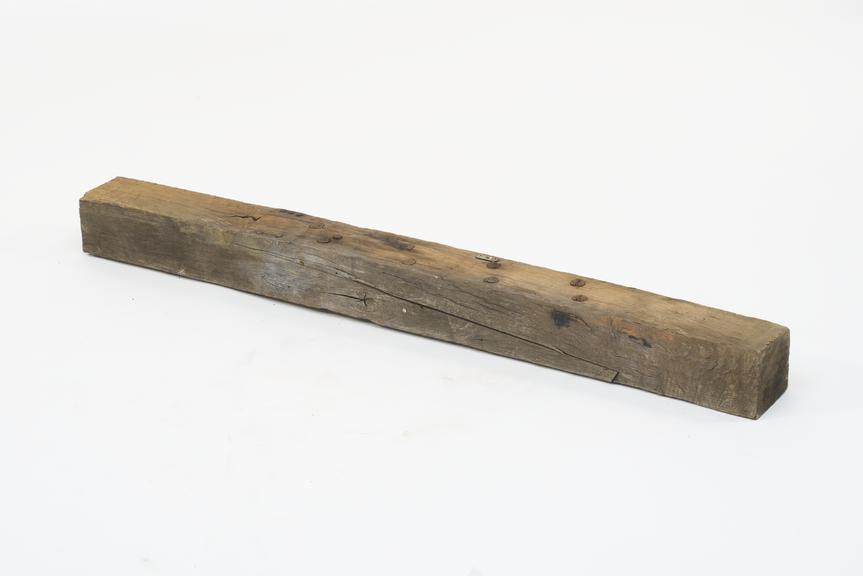

Scarf joint, 17th century, from the North Nave Aisle, York Minster

Details

Category:
Building Construction
Object Number:
1986-630
Measurements:
overall: 165 mm x 1850 mm x 155 mm,
type:
joint
credit:
York Minster
