Plywood board

PART OF:
Items found at Hayes Store

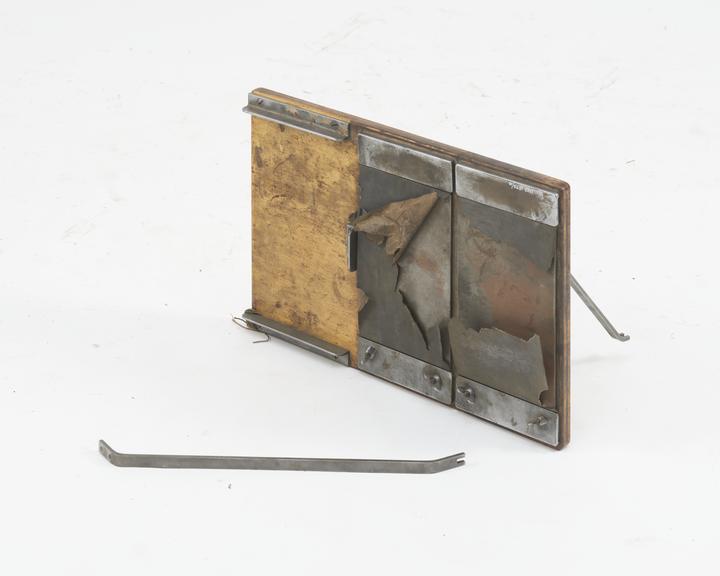

A plywood board, 19" by 12", with metal fittings to mount on some machine, carrying sheets of carborundum paper to form a lap

Details

Category:
Motive Power
Object Number:
1993-1593/18
Measurements:
overall: 310 mm x 490 mm x 70 mm,
type:
board
