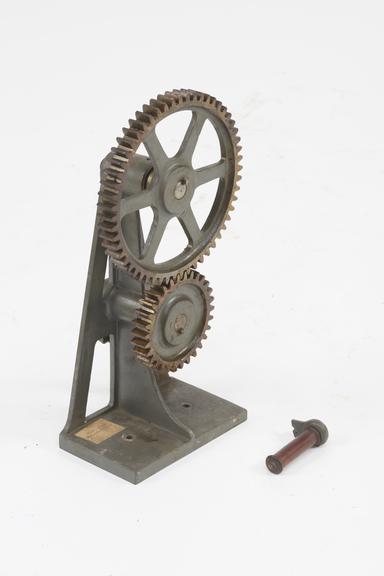

Two spur wheels in gear with driving handle
This image is released under a CC BY-NC-SA 4.0
Licence
License this image for commercial use at Science and Society Picture Library
License
Science Museum Group
© The Board of Trustees of the Science Museum
Two spur wheels in gear with driving handle on the axis of the pinion
Details
- Category:
- Kinematics
- Object Number:
- 1868-244
- Measurements:
-
Two spur wheels: 440 mm x 205 mm x 130 mm,
Driving handle: 94 mm x 50 mm x 25 mm,
- type:
- wheels
- credit:
- Schroeder, J.
