Machine Cut Double Helical Bevel Wheel

Made:
1908 in London
Machine Cut Double Helical Bevel Wheel

Creative Commons LicenseThis image is released under a CC BY-NC-SA 4.0 Licence

License this image for commercial use at Science and Society Picture Library

License

Science Museum Group
© The Board of Trustees of the Science Museum

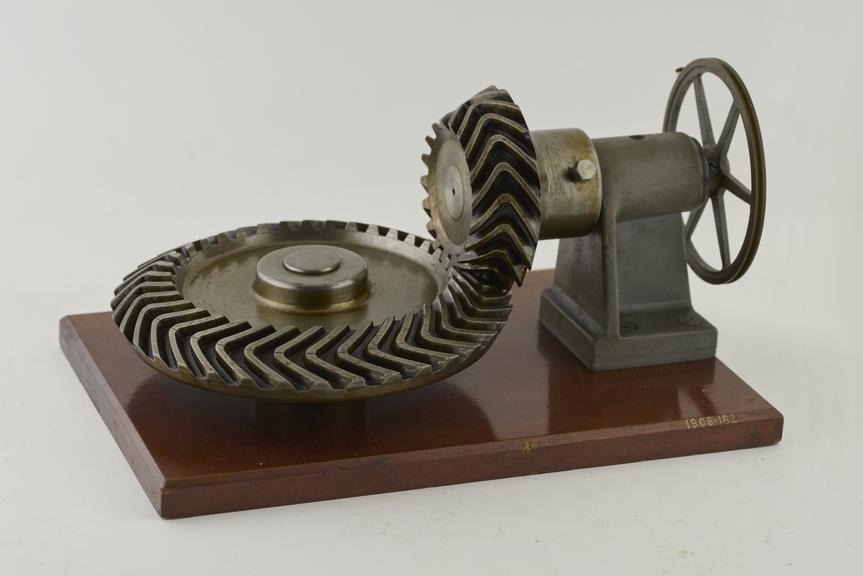

Machine cut double helical bevel wheel and matching pinion mounted on wooden base.

Details

Category:
Kinematics
Object Number:
1908-182
Materials:
steel and wood
Measurements:
overall: 180 mm x 350 mm x 230 mm,
type:
helical bevel gear
credit:
1902-138
