Radical line plotter by Hilger & Watts

Made:
1950-1970 in London
maker:
Hilger and Watts Limited

Radical line plotter by Hilger & Watts, No.101126, 1950-1970

Details

Category:
Surveying
Object Number:
1995-622
Measurements:
overall: 420 mm x 800 mm x 360 mm,
type:
line plotter
credit:
University of East London. School of Sur

Parts

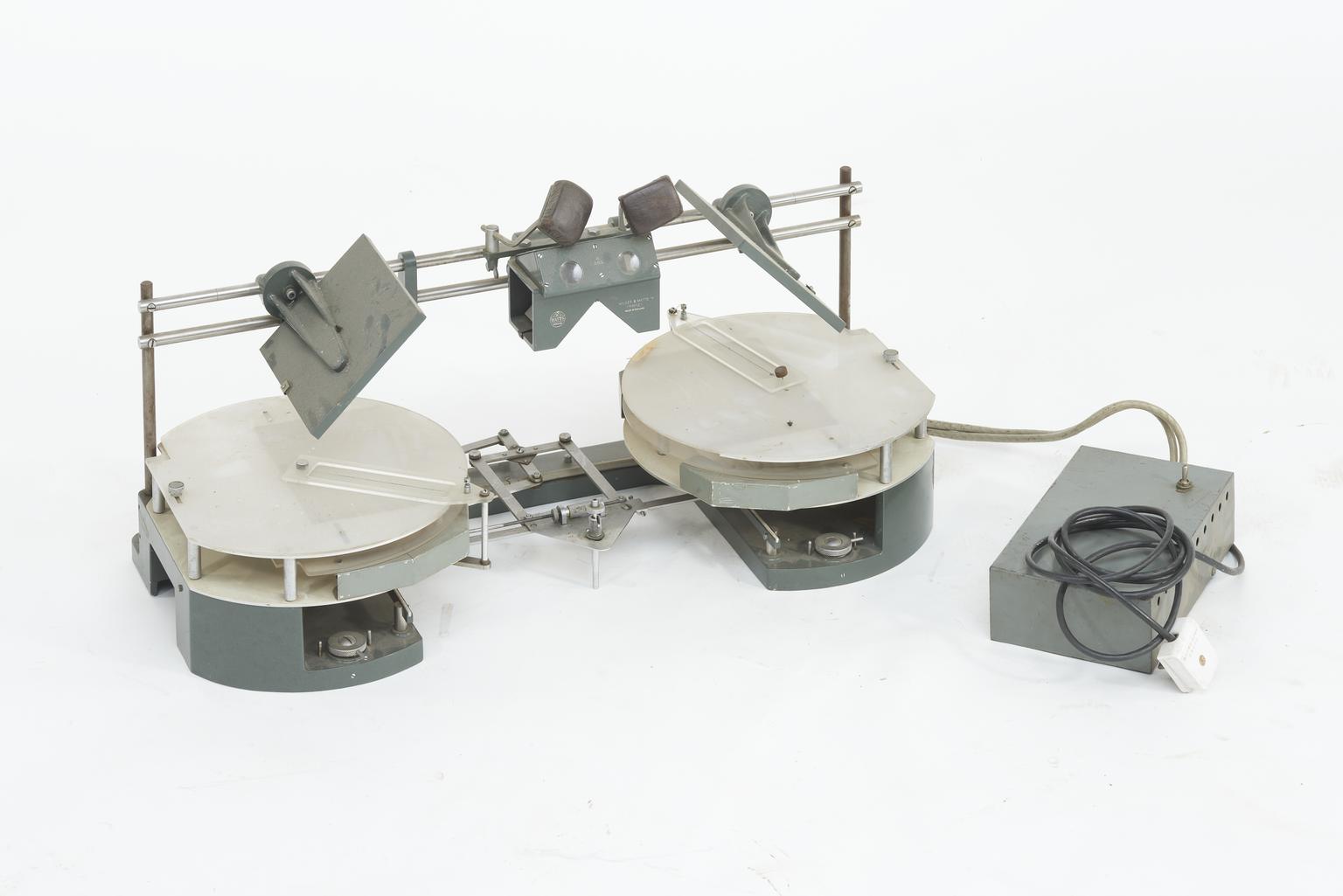

Radical line plotter by Hilger & Watts

Radical line plotter by Hilger & Watts

Radical line plotter by Hilger & Watts, No.101126, 1950-1970

Measurements:
overall: 420 mm x 800 mm x 360 mm,
Object Number:
1995-622/1
type:
line plotter
Image ©
The Board of Trustees of the Science Museum
Accessories for Radical line plotter by Hilger & Watts

Accessories for Radical line plotter by Hilger & Watts

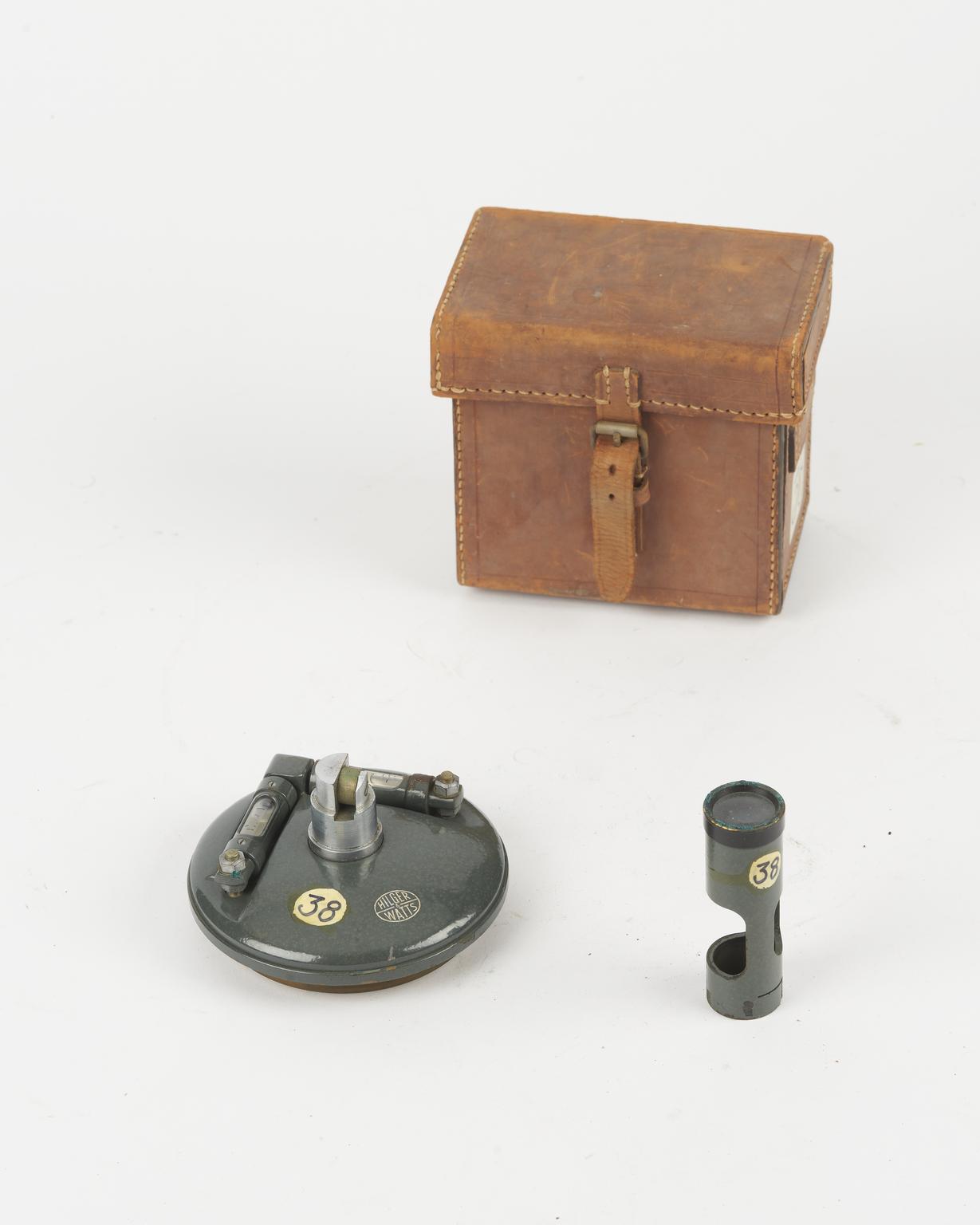

Circular Accessory and eyepiece in leather satchel for Radical line plotter by Hilger & Watts, No.101126, 1950-1970

Measurements:
Case: 125 mm x 135 mm x 90 mm,
Spirit level: 60 mm 110 mm,
Eyepiece: 80 mm 25 mm,
Object Number:
1995-622/2
type:
accessories
Image ©
The Board of Trustees of the Science Museum
