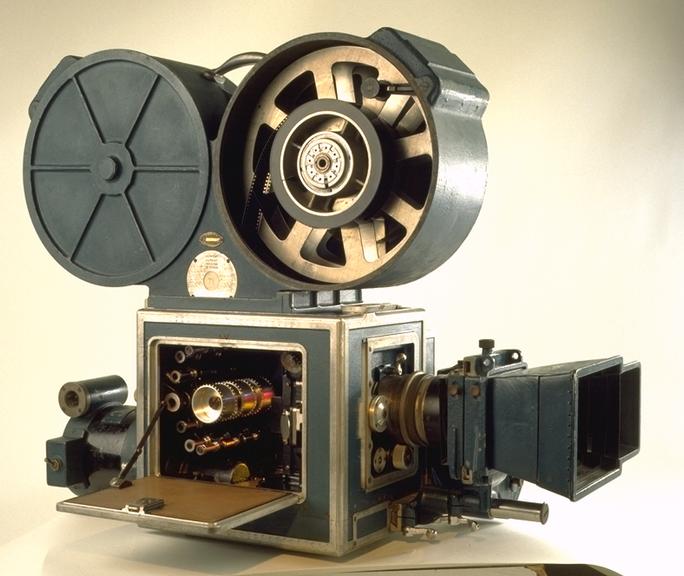

Technicolor three-colour 35mm Camera, made by Technicolor Corporation, USA c. 1932. Serial number DE17.

Technicolor, introduced in 1915, is regarded as the finest colour motion picture process. It evolved through four versions, culminating in this three-colour camera, which used a beam splitter behind the lens with red, green and blue filters to record the primary colours on three separate monochrome films.

The camera has two film gates. The green separation is recorded onto a negative through a green filter directly behind the lens. At right-angles to the lens were two additional negatives placed back to back (a bi-pack arrangment) that received light through a magenta (i.e. a combination of red and blue) filter. The film which recorded the red separation was panchromatic, like that used to recorded the green separation, but the other was orthochromatic, only sensitive to blue and green, so it only recorded the blue part of the magenta light. Its base was dyed orange to filter out the blue so that only red light was received by the panchromatic film behind it.

Subsequently, a dye matrix positive was made from each processed negative on bichromated gelatin film. These reproduced all the tones as different levels of hardened gelatin - the highlights were clear of gelatin. These matrices were then dyed with the subtractive primaries, yellow (for blue negative), magenta (for green negative) and cyan (for red negative) and used to make the colour print.

The first three colour Technicolor production was Walt Disney's cartoon 'Flowers and Trees' in 1932.

The number DE17 on this camera implies that this was camera No 17 at Denham Film Studios, Buckinghamshire.

Details

Category:
Cinematography
Collection:
Kodak Collection
Object Number:
1990-5036/8828
Materials:
steel (metal), rubber (unidentified), glass, canvas and electronic components
Measurements:
overall: 650 mm x 410 mm x 765 mm,
type:
cine camera
credit:
The Kodak Collection at the National Media Museum, Bradford

Parts

Cine Camera Tripod

Cine Camera Tripod

Technicolor, introduced in 1915, is regarded as the finest colour motion picture process. It evolved through four versions, culminating in this three-colour camera, which used a beam splitter behind the lens with red, green and blue filters to record the primary colours on three separate monochrome films.

The camera has two film gates. The green separation is recorded onto a negative through a green filter directly behind the lens. At right-angles to the lens were two additional negatives placed back to back (a bi-pack arrangment) that received light through a magenta (i.e. a combination of red and blue) filter. The film which recorded the red separation was panchromatic, like that used to recorded the green separation, but the other was orthochromatic, only sensitive to blue and green, so it only recorded the blue part of the magenta light. Its base was dyed orange to filter out the blue so that only red light was received by the panchromatic film behind it.

Subsequently, a dye matrix positive was made from each processed negative on bichromated gelatin film. These reproduced all the tones as different levels of hardened gelatin - the highlights were clear of gelatin. These matrices were then dyed with the subtractive primaries, yellow (for blue negative), magenta (for green negative) and cyan (for red negative) and used to make the colour print.

The first three colour Technicolor production was Walt Disney's cartoon 'Flowers and Trees' in 1932.

Materials:
wood (unidentified) and steel (metal)
Object Number:
1990-5036/8828/1
type:
tripod
